PWB Enclosure Boxes
Stock and custom enclosure boxes for test socket and test fixture applications.
Key Features
- Stock enclosures available
- Custom shapes and sizes
- Reasonable lead times
- Test socket and fixture applications
Tooltronics enclosure boxes provide a rugged, precision-machined platform for integrating test fixtures, sockets, and interface test adapters in laboratory and production environments. Constructed from high-quality aluminum with a black anodized finish, they offer excellent durability, stability, and a clean, professional appearance.
Both the ITA Enclosure Box and EB3092510 PWB Enclosure Box are available with interchangeable top configurations for mounting a Tooltronics MicroPress Test Fixture, ZIF Test Socket, or LIF Test Socket, with built-in clearance for wiring and easy system integration.

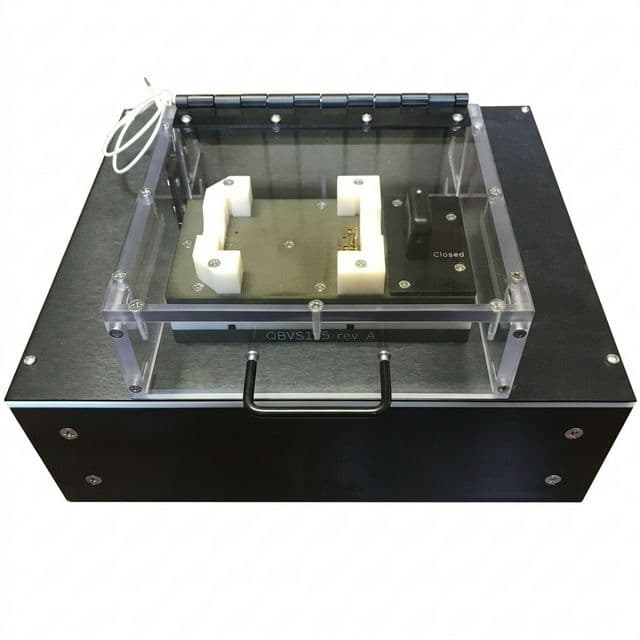

An optional hinged safety cover made from clear polycarbonate enhances operator safety while maintaining full visibility of the device under test. The cover can include a magnetic reed switch interlock and is available for ZIF or Ejection LIF socket configurations.
ITA Dimensions
6.048" × 10.000" × 10.094"
EB3092510 Dimensions
3.5" × 9.250" × 10.000"
PWB Enclosure Boxes for Test Sockets and Test Fixtures
Tooltronics offers a range of PWB (Printed Wiring Board) enclosure boxes designed to house and protect your test sockets and test fixtures. These enclosures provide a robust and reliable platform for your testing applications, ensuring accurate and repeatable results. Whether you need a standard size or a custom-designed enclosure, we have the solution for your specific requirements.
Stock vs. Custom PWB Enclosure Boxes
Choosing between a stock and custom enclosure depends on your specific application needs. Here's a quick comparison:
| Feature | Stock Enclosure Boxes | Custom Enclosure Boxes |
|---|---|---|
| Availability | Readily available, quick delivery | Longer lead times due to design and manufacturing |
| Cost | Lower initial cost | Higher initial cost due to custom design |
| Customization | Limited customization options | Fully customizable to your specific dimensions and requirements |
| Ideal For | Standard test setups, quick prototyping | Unique test setups, specific size or feature requirements |
Frequently Asked Questions
What materials are used for PWB enclosure boxes?
Our PWB enclosure boxes are typically manufactured from durable materials such as aluminum, steel, and high-impact plastics. The material choice depends on the application's environmental conditions and required level of protection.
Can I get a custom PWB enclosure box designed for my specific test fixture?
Yes, Tooltronics specializes in designing and manufacturing custom PWB enclosure boxes. We work closely with engineers to develop solutions that meet their exact specifications, including dimensions, mounting options, and connector placement.
What is the typical lead time for a custom enclosure box?
The lead time for a custom PWB enclosure box depends on the complexity of the design and current production schedule. We will provide you with an estimated lead time after reviewing your specifications. Contact us at https://tooltronicsinc.com/contact.
Do you offer enclosures with integrated cooling solutions?
While standard enclosures don't come with integrated cooling, we can incorporate cooling solutions such as fans and heat sinks into custom enclosure designs to manage heat dissipation during testing.
Need a Custom Solution?
Tooltronics specializes in custom engineering. Contact our team to discuss your specific testing requirements.
Contact Engineering
